FLATBED DIE CUTTING MACHINE
Engineered for Complex Shapes, Multilayer Materials, and Fast Job Changeovers
PRODUCT OVERIEW

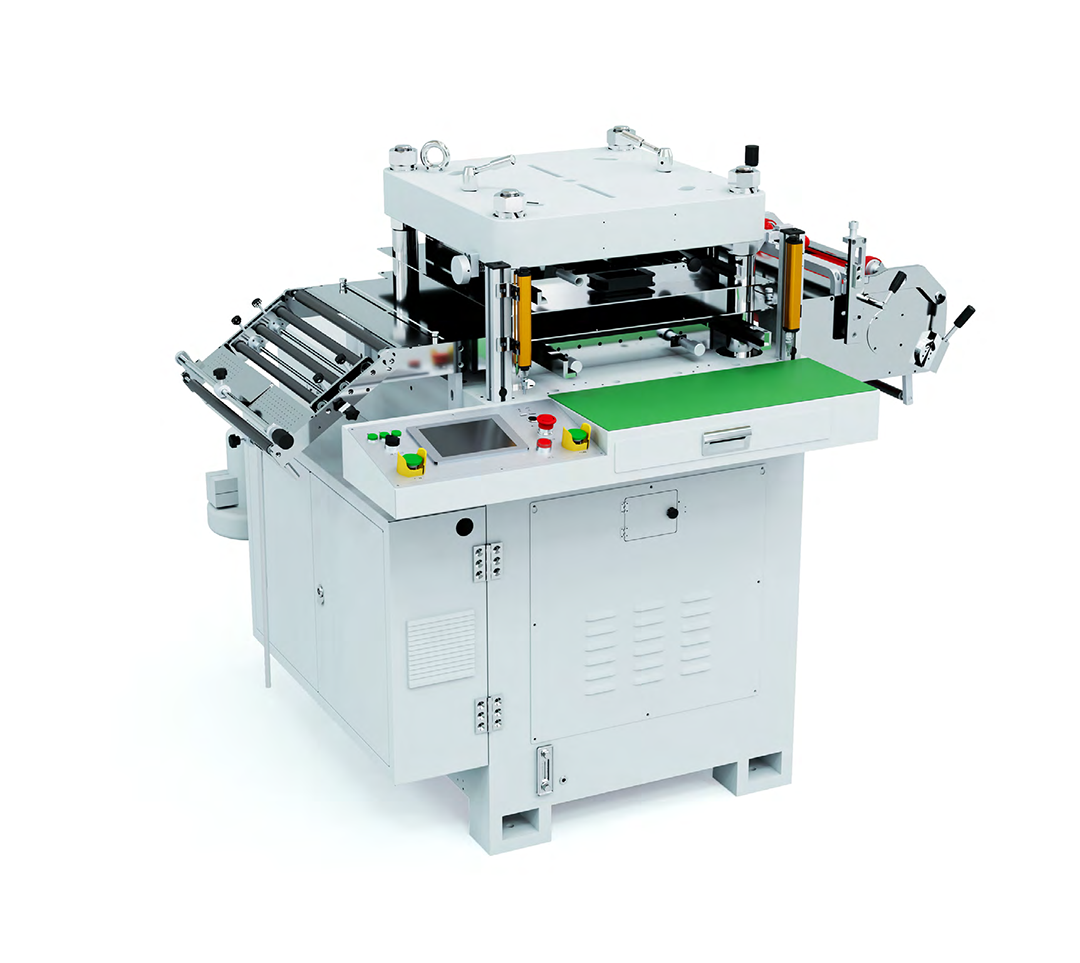

HOACO flatbed die cutting machines are engineered for precision and flexibility. Unlike rotary systems, flatbed presses use vertical cutting action to deliver higher force, perfect for thick or multilayer materials. With customizable features and fast tooling change, they are ideal for medical, electronics, adhesive, and specialty converting industries.
HOACO’s flatbed die cutting machine is an integrated flatbed converting solution designed for materials requiring precise, repeatable cuts with tight tolerances — from foam and rubber to specialty adhesive substrates.
Why Choose Flatbed Die Cutting?
Unmatched Depth Control for Sensitive Materials
- As a precision flatbed die cutting machine, it applies uniform pressure across the entire cutting surface, making it the ideal choice for materials that require controlled, partial-depth cuts without damaging underlying layers.
Versatility Across Complex Shapes and Substrates
- Flatbed die cutting supports a wide range of materials and intricate geometries that continuous rotary processes cannot accommodate, from thick foams to multi-layer composites.
Consistent Quality Across Every Production Run
As a flatbed converting machine, its servo-driven system delivers repeatable accuracy from the first cut to the last, ensuring stable output whether you're running small batches or large volumes.
Lower Tooling Cost for Short Runs
Flatbed tooling is more cost-effective to produce and modify than rotary dies, making flatbed die cutting machines the preferred solution for prototyping, customized orders, and frequent design changes.
KEY FEATURES
integrated flatbed converting machine
High Cutting Force
Vertical press ensures uniform pressure for thick or multilayer materials
High Precision Servo Control
As a flatbed converting machine, its servo-driven system ensures accurate, repeatable cuts with consistent depth control across every production run.
Quick Die Change
Flat dies allow rapid changeover, reducing downtime
Vision Registration Optional
Camera-based registration ensures precise die-to-pattern alignment
Cleanroom Compatible
Compliant with medical production standards
MACHINE MODELS
| MODEL | HXM-200 | HXM-420 | HXM-650 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| # of Support Post | 2 | 4 | 4 | ||||||||
| Max Cuts/Min | 300 | 200 | 120 | ||||||||
| Max Cutting Force | 50kN (5 ton) | 120kN (12 ton) | 120kN (12 ton) | ||||||||
| Max Cutting Size | 200 x 180 mm | 420 x 320 mm | 450 x 650 mm | ||||||||
| Die Adjustment Height | 20 mm | 20 mm | 20 mm | ||||||||
| Stroke Distance | 24 mm | 28 mm | 30 mm | ||||||||
| Max Web Width | 200 mm | 420 mm | 450 mm | ||||||||
| Feeding Precision | ≤ 2% mm | ≤ 2% mm | ≤ 2% mm | ||||||||
| Dimension | 1200(L) * 910(W)* 1250(H) mm | 1450(L) * 1550(W) * 1450(H) mm | 1700(L) * 1300(W) * 1500(H) mm | ||||||||
| Weight | 1.0 Ton | 2.3 Ton | 2.6 Ton | ||||||||
| Power | 3P5W 380~400V, 5 kW | 3P5W 380~400V, 8 kW | 3P5W 380~400V, 10 kW | ||||||||
| Safety | Safety Curtain, CE Certified | ||||||||||
| Compressed Air Pressure | 0.55 - 0.65 MPa | ||||||||||
| Operating Modes | Jog / Single / Continuous / Project | ||||||||||
| Tool Acceptance | Steel Rule, Male/Female Reciprocating, Flexible Chemical Etching | ||||||||||
TYPICAL APPLICATIONS
Abrasives
Filters
Gaskets
Insulators
Medical Devices
Packaging and Paper Products
Plastics/Foams
Pressure Sensitive Adhesives
CUSTOM
SOLUTIONS
We understand that every production line is unique. Our engineering team works closely with you to design custom rotary die cutting solutions tailored to your specific needs:
- Multi-station die cutting (combining slitting, laminating, and die cutting in one line)
- Laser die cutting integration for complex shapes (no die tooling costs for short runs)
- In-line inspection systems (100% quality control with vision cameras)
- Specialized material handling (static elimination, anti-stick, corona treatment)
PROJECT CONSULTING
PROTOTYPING
ON SITE TRAINING
24/7 SUPPORT
