STACKING SYSTEM
Stacking is a critical process at the end of sheet material production lines. It enables automatic product organizing, counting, stacking, and transfer, significantly improving packaging efficiency and overall production workflow. With over 20 years of experience in the converting industry, HOACO has developed various stacking solutions and can provide customized solutions tailored to customers’ specific product requirements and production needs.
FANFOLD STACKING MACHINE
PRODUCT
OVERVIEW

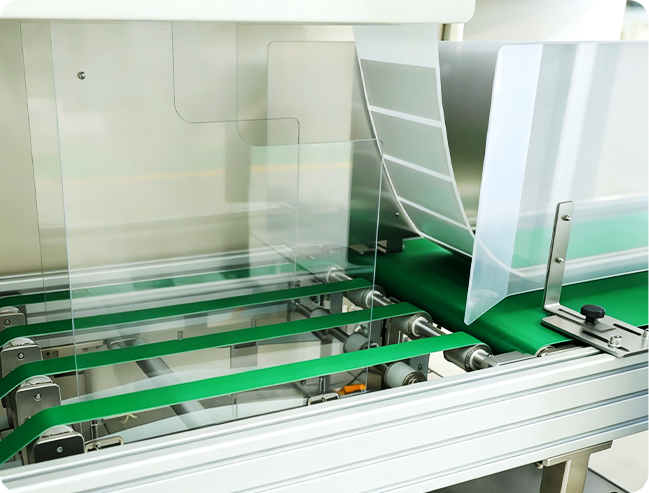

Suitable for relatively thick materials, or continuous webs that cannot be re-wound due to material-specific properties.
Adjustable working width: 250 mm–450 mm, configurable according to actual product width
Stacking length programmable (Folds every 2 sheets, every 3 sheets, etc.), stacking-length range: 230 mm–500 mm
Max. stacking height: 700 mm (max)
Production speed: 15–30 m/min
CONVEYOR STACKING WITH REJECT FUNCTION
PRODUCT
OVERVIEW

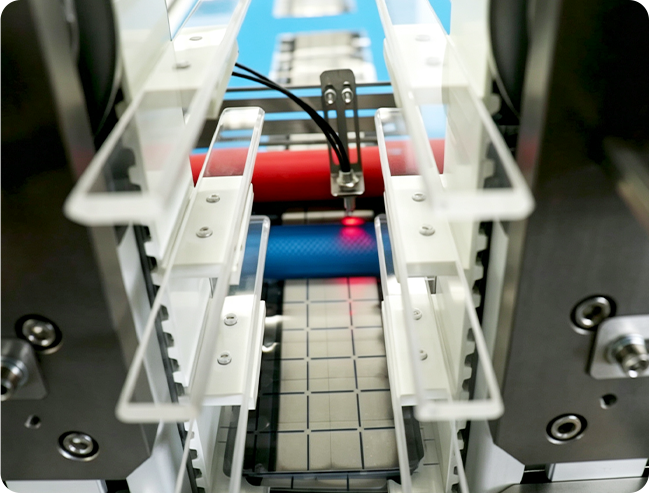

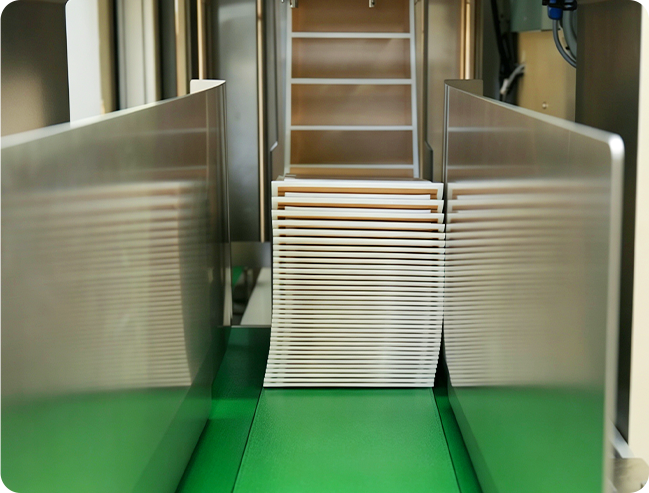

For sheet-form products. Fish-scale style counting and batch separation available. Vertical stacking is not supported.
Applicable product width: 120 mm–450 mm
Applicable product length: 80 mm–400 mm
Production speed: ≤30 m/min
Equipped with defective-product reject function; realizes fish-scale arrangement, automatic counting and batch separation.
STACKING-INTO-TRAY MACHINE
PRODUCT
OVERVIEW

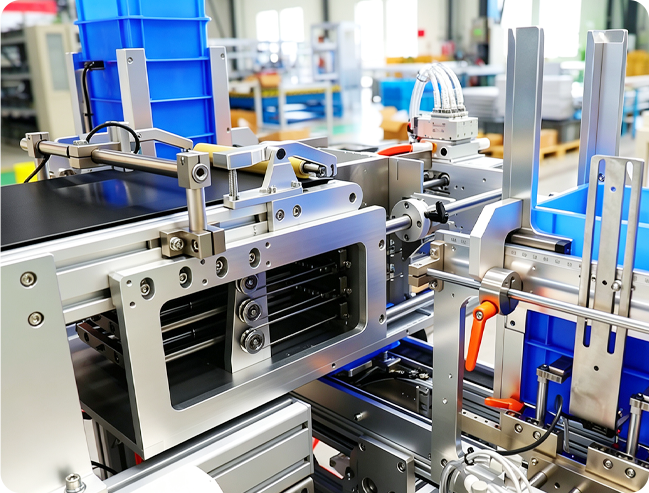

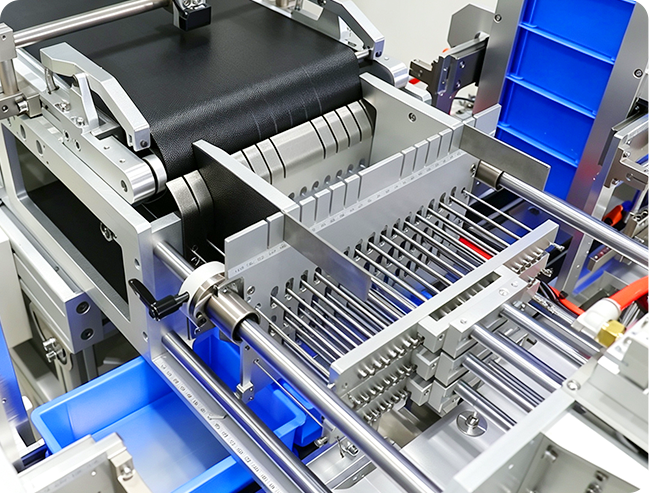

Matched with the rear end of a rotary die cutting machine, the equipment automatically conveys, counts and stacks cut sheets accurately. Products are stacked in preset quantities and collected into special trays with one stack per tray, realizing automatic material collection and facilitating subsequent packaging and turnover.
APPLICABLE PRODUCT SPECIFICATIONS
Suitable for various regular sheet products with a maximum processing size of 250 mm×250 mm. Adjustable equipment parameters adapt to different product specifications.
OPERATING SPEED
The standard operating speed is 15 m/min. The equipment runs stably with accurate counting, ensuring intact products and tidy stacks for continuous batch production.
SMALL SIZE SHEET STACKING MACHINE
PRODUCT
OVERVIEW

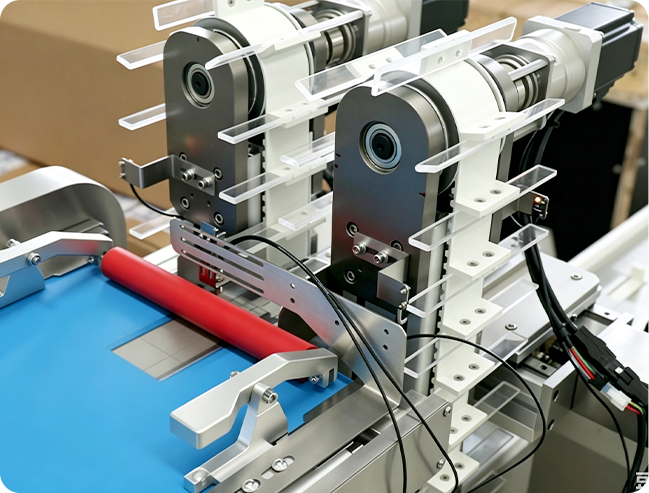

The material-receiving mechanism descends slowly during stacking to maintain consistent relative height with the conveyor. The rear end can be connected to a conveyor belt or packaging machine.
Applicable product width: 70 mm–130 mm
Applicable product length: 100 mm–160 mm
Production speed: 10 m/min
Number of stacked sheets is programmable.
LONG SHEET STACKING MACHINE
PRODUCT
OVERVIEW

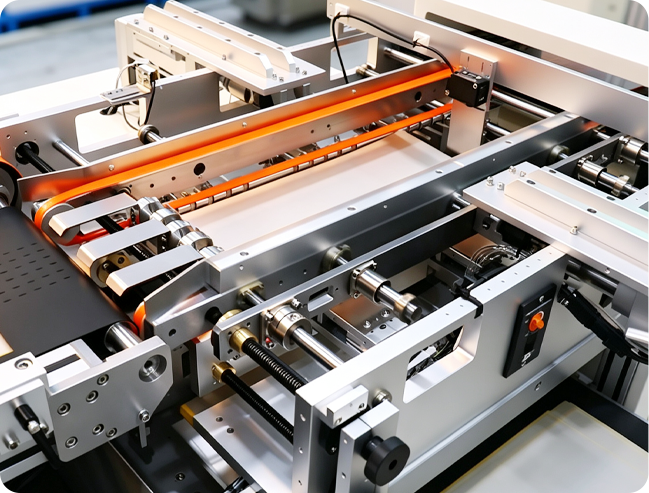

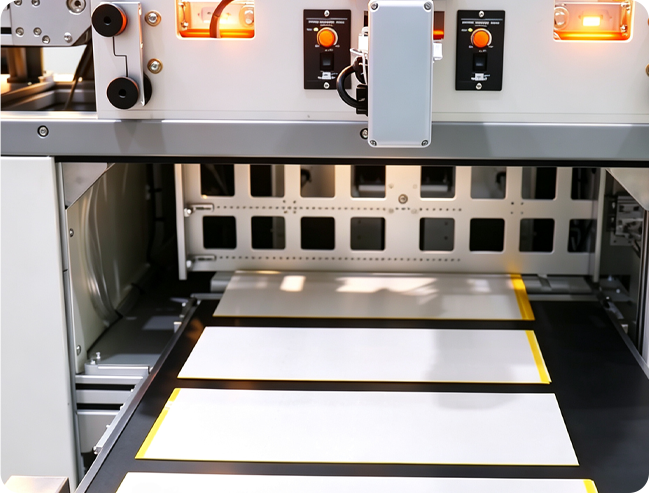

Suitable for sheet products of considerable length, dimensions customizable. Sample product shown in video: length 400 mm, width customizable.
Stacking height: 100 mm
Line speed: 12 m/min
Capacity: 25 pcs/min
Working principle: Sheets fall into the pre-staging bin. Once the preset sheet quantity is reached, the pre-staging bin transfers the complete stack to the outfeed conveyor, which discharges the stacked products.
CUSTOM
SOLUTIONS
We understand that every production line is unique. Our engineering team works closely with you to design custom rotary die cutting solutions tailored to your specific needs:
- Multi-station die cutting (combining slitting, laminating, and die cutting in one line)
- Laser die cutting integration for complex shapes (no die tooling costs for short runs)
- In-line inspection systems (100% quality control with vision cameras)
- Specialized material handling (static elimination, anti-stick, corona treatment)
